The Atlona AT-UHD-SW-510W is a 5×2, multi-format matrix switcher with wireless presentation capability. It provides universal BYOD (bring your own device) compatibility with HDMI, DisplayPort, and USB-C inputs, plus wireless connectivity for mobile devices. The SW-510W is HDCP 2.2 compliant, and features matrixed or mirrored HDMI and HDBaseT outputs. The HDBaseT output is ideal for use with the Atlona External link opens in new tab or windowAT-UHD-EX-100CE-RX-PSE HDBaseT receiver, or the External link opens in new tab or windowAT-HDVS-SC-RX scaling HDBaseT receiver. It also includes automatic input switching and automatic display control capability, both applicable to wired and wireless source connections. This unique multi-format matrix switcher and wireless gateway provides a universal connectivity solution for presentation devices in a wide range of professional AV applications.


The USB-C port on the SW-510W is ideal for Mac, Chromebook, and Windows PCs. All inputs and the local HDMI output are compatible with video signals up to 4K/UHD @ 60 Hz with 4:4:4 chroma sampling, as well as data rates up to 18 Gbps. For integration convenience and flexibility, simultaneous 18 Gbps HDMI and 10 Gbps HDBaseT outputs make the SW-510W ideal for various presentation scenarios such as primary and confidence displays in a corporate auditorium or lecture hall. The HDBaseT output extends video, audio, control, and Ethernet up to 100 meters. (For AV signals exceeding 10 Gbps, 4K/UHD video will be subsampled to 4:2:0, or HDR metadata removed for HDBaseT transmission.)

Wireless BYOD Connectivity

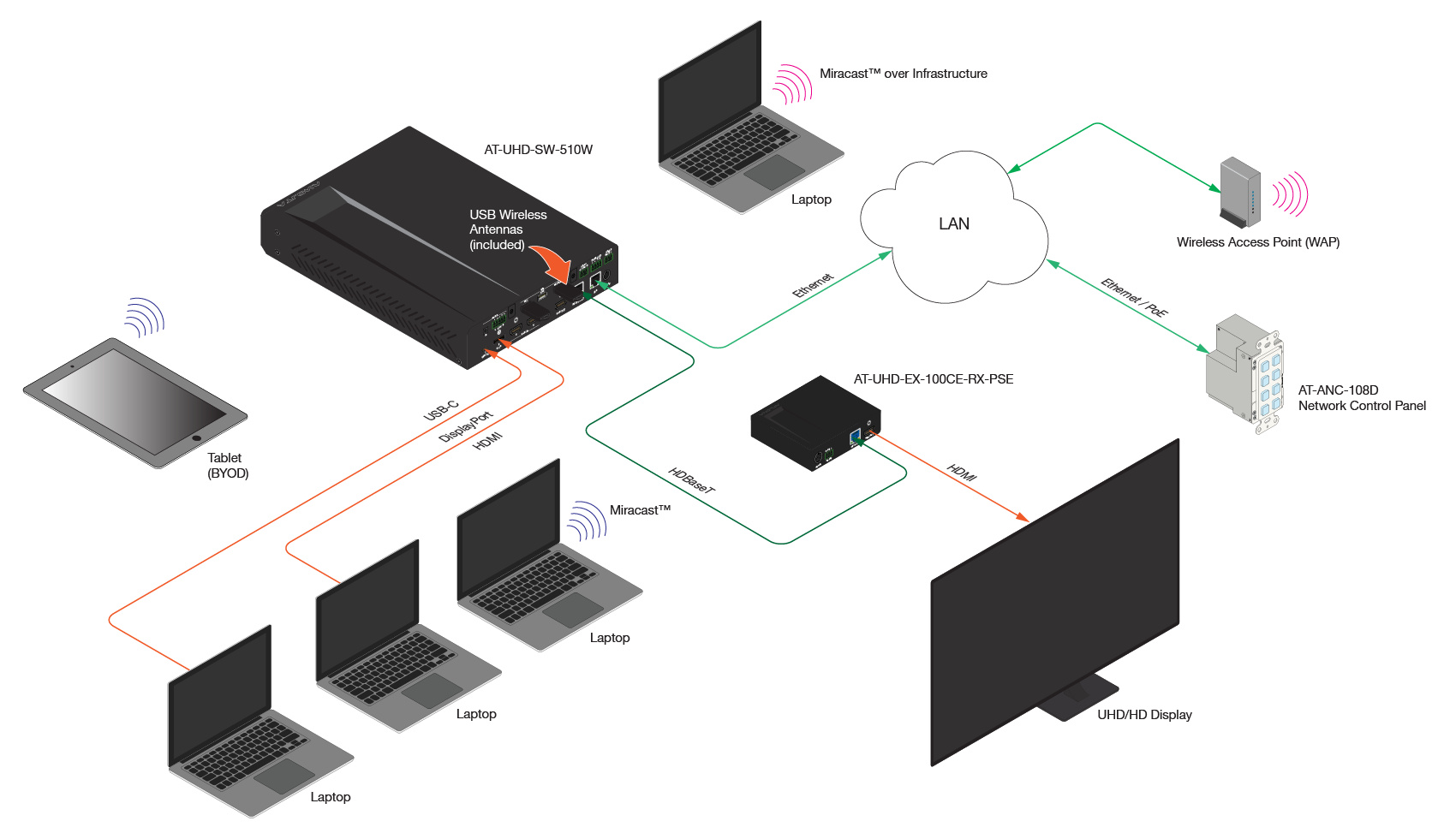

In addition to wired AV connections, the SW-510W interfaces with a presenter’s iOS, Android, Mac, Chromebook, or Windows device over Wi-Fi®, and allows screen mirroring without the need to install an app. It can serve as an integrated, dual band access point, or be networked into an existing Wi-Fi installation. With a second antenna (included), the SW-510W can also provide simultaneous Wi-Fi and Miracast™ (Wi-Fi Direct®). In addition, the SW-510W supports Miracast over Infrastructure which allows Miracast over a facility Wi-Fi network or LAN, rather than over a direct wireless link. Please External link opens in new tab or windowclick here for complete information about wireless AV connectivity with the SW-510W.

(Note: For Android devices, casting is not available for video from apps such as YouTube, Netflix, Hulu, and Amazon Prime Video.)



  • Meeting spaces – The SW-510W provides the flexibility to accept any presenter device, whether wired or wireless. This capability is ideal for a wide range of meeting environments, from a huddle room to a large presentation space in a convention center.
  • Classrooms and auditoriums – A credenza or lectern-based AV system for resident sources, plus wireless connectivity for a participant’s laptop or tablet. An instructor can moderate wireless AV presentations between up to four student mobile devices.
  • Small to medium-sized meeting spaces – The SW-510W is compact and ideal for under-table mounting. It conveniently provides automatic switching and display control for simplified user operation, especially with laptops and mobile devices brought into the system.

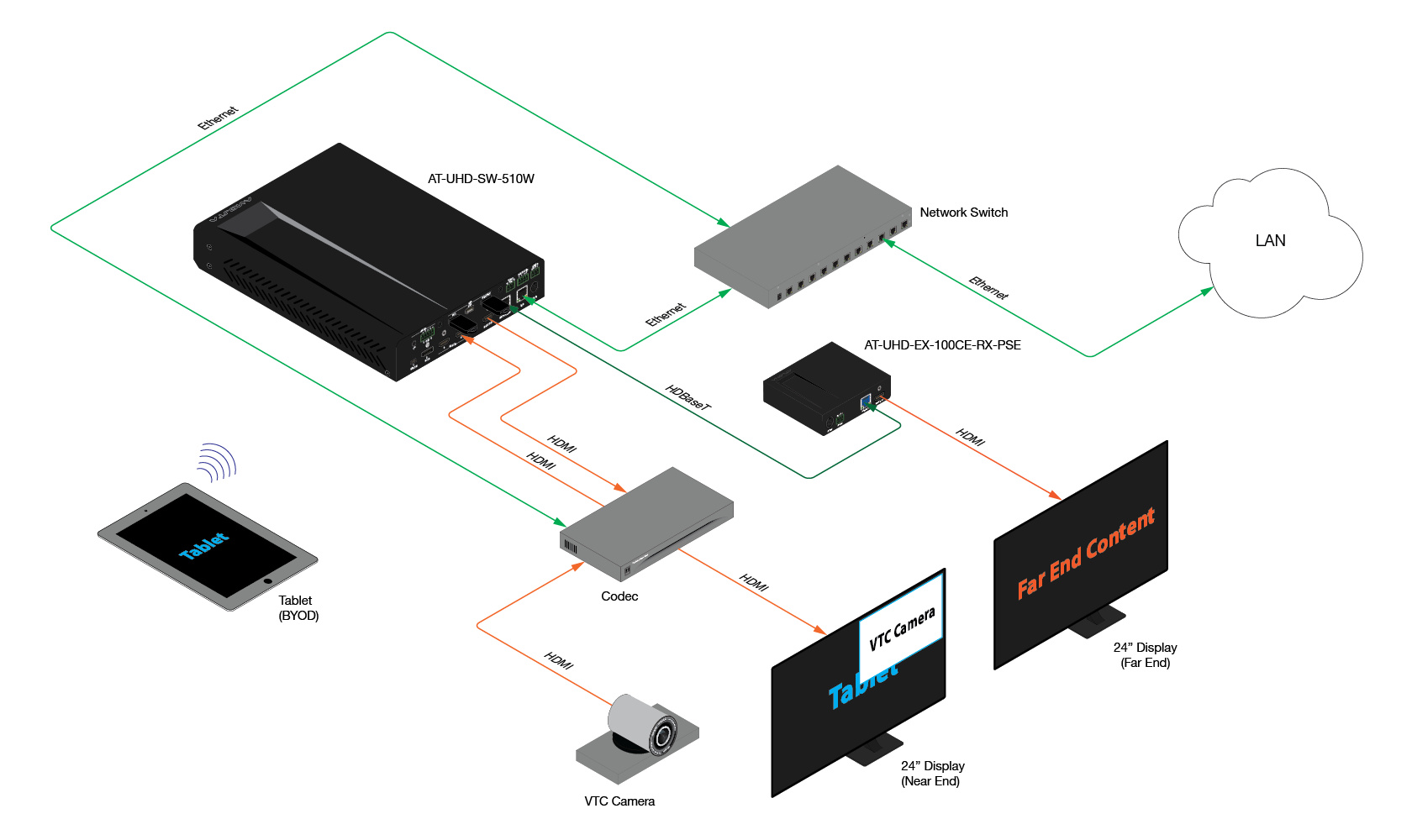

  • Conference rooms and boardrooms – The SW-510W features two matrixed outputs for seamless integration into a display and a hardware-based videoconferencing system, with additional versatility by enabling wireless AV content presentations to the far end. The matrix switching capability provides the convenience of auto-switching for local BYOD content that feeds into the codec, while simultaneously allowing far-end content to be shared.

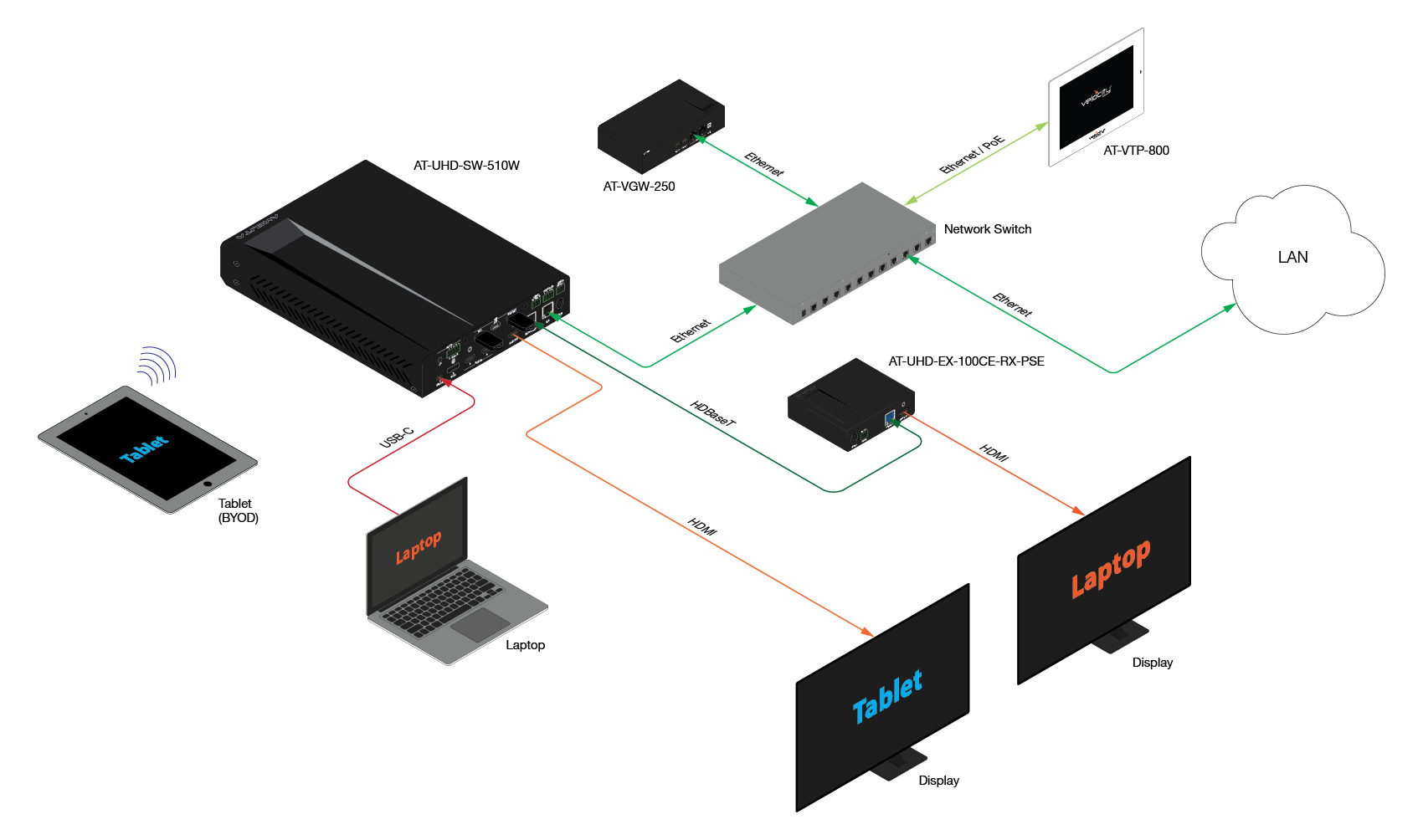

  • Presentation spaces where two displays are needed – This switcher can be installed in a lectern to serve a confidence monitor, plus the primary display in a remote location. With matrixed outputs, the SW-510W also can support two simultaneous presenters on two screens.


Technical Features

5×2 universal AV matrix switcher

  • Two HDMI, one DisplayPort, and one USB-C* input, plus a dedicated wireless AV input
  • Delivers true BYOD capability for a wide range of presentation sources
  • * USB-C port supports AV and device charging, but not USB data.

Matrixed or mirrored HDMI and HDBaseT outputs

  • HDBaseT output transmits AV, control, and Ethernet up to 330 feet (100 meters) @ 1080p with CAT5e/6 or 4K/UHD using CAT6a/7 cable*
  • Mirrored 18 Gbps HDMI and 10 Gbps HDBaseT outputs provide flexible options for AV system designs and applications
  • * To achieve optimal HDBaseT performance, CAT6a or CAT7 shielded twisted pair cable is highly recommended.

Wireless AV gateway

  • Provides convenient Wi-Fi connectivity for an iOS, Android*, Mac, Chromebook, or Windows-based device
  • Includes dual Wi-Fi access points – secondary access point required for Miracast (Wi-Fi Direct)
  • Integrated access point can be segregated from the facility network for security reasons
  • * Does not support casting of video from apps such as YouTube, Netflix, Hulu, and Amazon Prime Video.

Native platform-based, wireless interfacing

  • Allows screen mirroring without the need for a separate app*
  • Supports wireless video up to 1080p/30 4:2:0 (up to 1080p/60 with Miracast)**
  • Supports Bluetooth®-assisted iOS device discovery. An optional Bluetooth adapter is required (not included with the SW-510W). The External link opens in new tab or windowPlugable and External link opens in new tab or windowKinivo Bluetooth 4.0 adapters are recommended.
  • Also supports Miracast over Infrastructure for use of facility Wi-Fi or Ethernet network
  • Wireless AV interfacing can be selectively enabled or disabled for each native platform
  • * Please External link opens in new tab or windowclick here for complete information about wireless AV connectivity with the SW-510W.
  • ** Video resolution capability is dependent on wireless signal quality.

Moderator mode for wireless AV presentations

  • Allows a user to moderate between up to four wirelessly connected devices through the SW-510W web GUI
  • Content from mobile devices (low refresh) can be previewed by the admin
  • Moderator can allow or kick (remove) any device from presenting on-screen

Automatic display control

  • Automatically changes display power state based on device connection or disconnection from the switcher
  • Works for both wired and wireless source devices
  • Control signals to display are transmitted via IP, RS-232, or CEC over HDBaseT, as well as RS-232 to a local display
  • Enables display and volume control. CEC enables control of consumer displays.
  • Also can be configured to power off display after a period of inactivity

Automatic input selection

  • Selects active input based on device connection or disconnection from the switcher, using hot plug detect and video detection technology
  • Works for both wired and wireless source devices
  • Enables simplified, automatic system operation with no user intervention necessary

USB-C charging for laptops, tablets, and smartphones

  • Conveniently provides mobile device powering during a meeting or presentation
  • Simple one-cable connection for AV and charging*
  • * Atlona strongly recommends using the supplied USB-C cable accessory.

4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling on local ports (HDMI, USB-C, and DisplayPort), plus support for HDR formats

  • HDBaseT output supports 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling
  • Local HDMI, USB-C, and DisplayPort ports are compatible with 4K HDR10 @ 60 Hz and Dolby® Vision™ @ 60 Hz, as well as HLG (Hybrid Log-Gamma) for future 60p HDR broadcast services

Splash screen customizable with welcome message and BYOD connection information

  • The SW-510W displays a welcome screen with instructions for participants and guests to present from their devices
  • Messaging and connection instructions can be customized with the option to display or hide specific network or access information
  • Ability to upload multiple splash screen background images that can be rotated

Secure wireless access and content sharing

  • Prevent unauthorized Wi-Fi access (room hijacking) with user-defined or randomly generated authentication passwords
  • Prevent unauthorized iOS and Mac wireless content sharing with randomly generated PIN pin codes, refreshed every five minutes
  • BYOD wireless connection can be set to a maximum specified duration
  • Configurable firewall available to restrict incoming and outgoing network traffic

Supports industry-standard, network security features and protocols

  • Prevent unauthorized Wi-Fi access (room hijacking) with user-defined or randomly generated authentication passwords
  • HTTPS, SSH, IEEE 802.1x, and WebSockets with TLS, WPA2-PSK, and AES-128 encryption

HDCP 2.2 compliant

  • Adheres to latest specification for High-bandwidth Digital Content Protection
  • Allows protected content to pass between authenticated devices
  • HDCP 2.2 supported only for wired AV connections

Audio de-embedding

  • De-embeds two channel PCM audio from any video source to a balanced, analog audio output
  • Independent gain controls for embedded and de-embedded two-channel PCM audio, plus bass / treble controls for the analog audio output

EDID management

  • Manages EDID communications with the source through a display’s EDID or internally stored EDID
  • Ensures desired audio formats and video resolutions are provided to the AV system

HDCP management

  • Automatically reports HDCP compliance status to the source based on the sink device
  • HDCP compliance can also be disengaged through AMS or a control system
  • Allows non-protected material from PCs to pass to non-compliant displays, streaming devices, and teleconference systems; protected content is not transmitted

TCP/IP, RS-232, and contact closure control

  • Ideal for IP-based control from Atlona External link opens in new tab or windowVelocity Control System and the External link opens in new tab or windowAT-ANC-108D button control panel
  • Also compatible with third-party control systems
  • Contact closure control ideal for room functions such as motorized screens and display lifts, as well as occupancy sensing and remote button controls

Occupancy sensor triggering

  • When used with a third-party occupancy sensor, the switcher can wake from standby, power up the display, and deliver a welcome screen when someone walks into the room
  • Greatly simplifies user operation by avoiding the need to manually power up the system

Front panel button controls and signal status LEDs

  • Allow simple and convenient control of source switching as well as display on/off and audio volume
  • Front panel LEDs highlight the currently selected input, including wireless BYOD

Rack-mountable 1U, half rack width enclosure

  • Easy installation into racks and confined spaces via optional AT-UHD-SW-510W-RM rack mounting hardware
  • Ideal for under-table installation with included mounting hardware

Included accessories

  • User guide, 2 USB Wi-Fi adapters/antennas, surface mounting brackets, 2 meter (6.5 foot) USB-C male-to-male cable (USB 3.1 Gen 1), and external universal power supply

Award-winning 10 year limited product warranty

  • Ensures long-term product reliability and performance in commercial and residential systems
  • Specify, purchase, and install with confidence
